Nintendo Cardboard Engineering

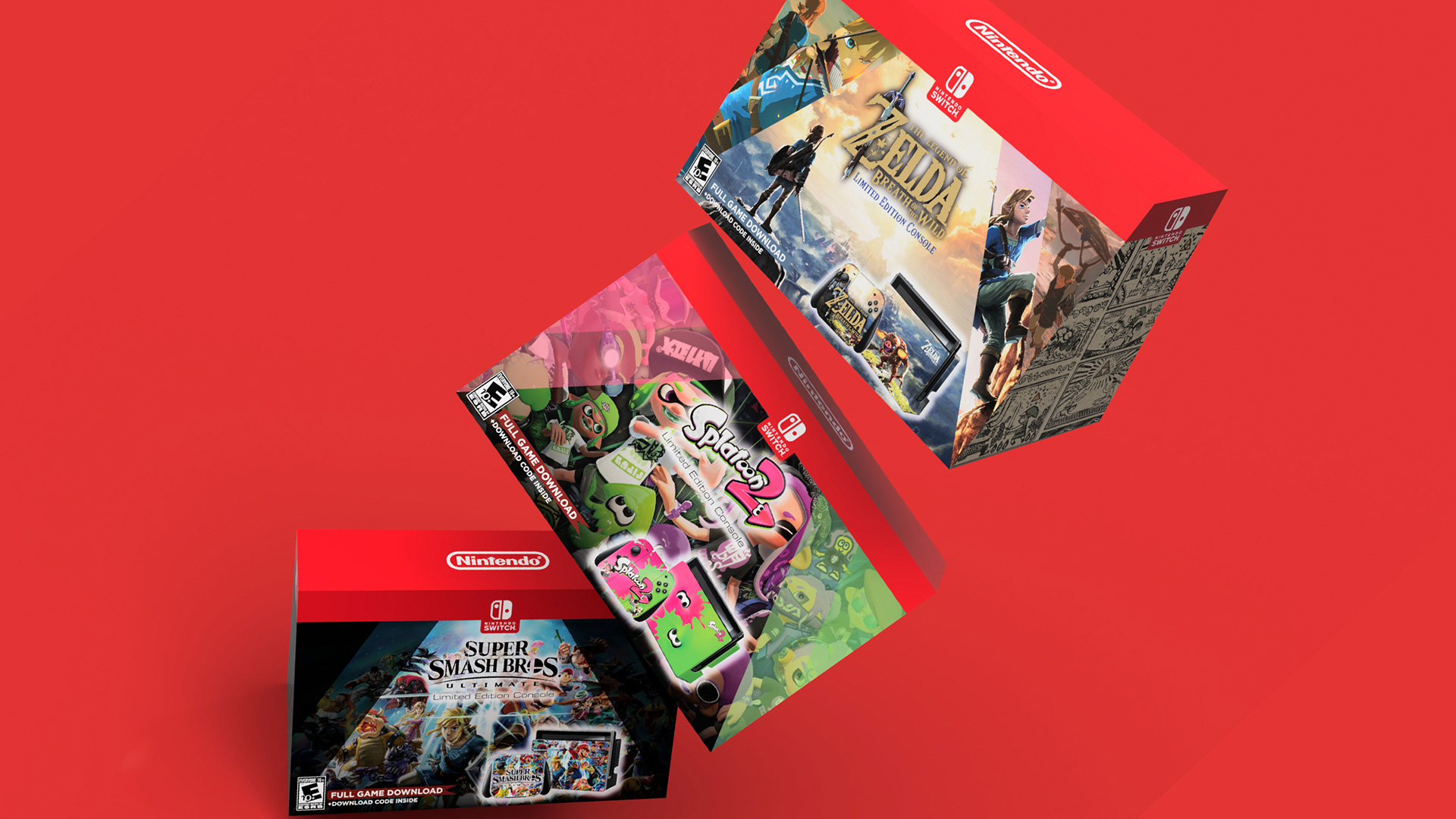

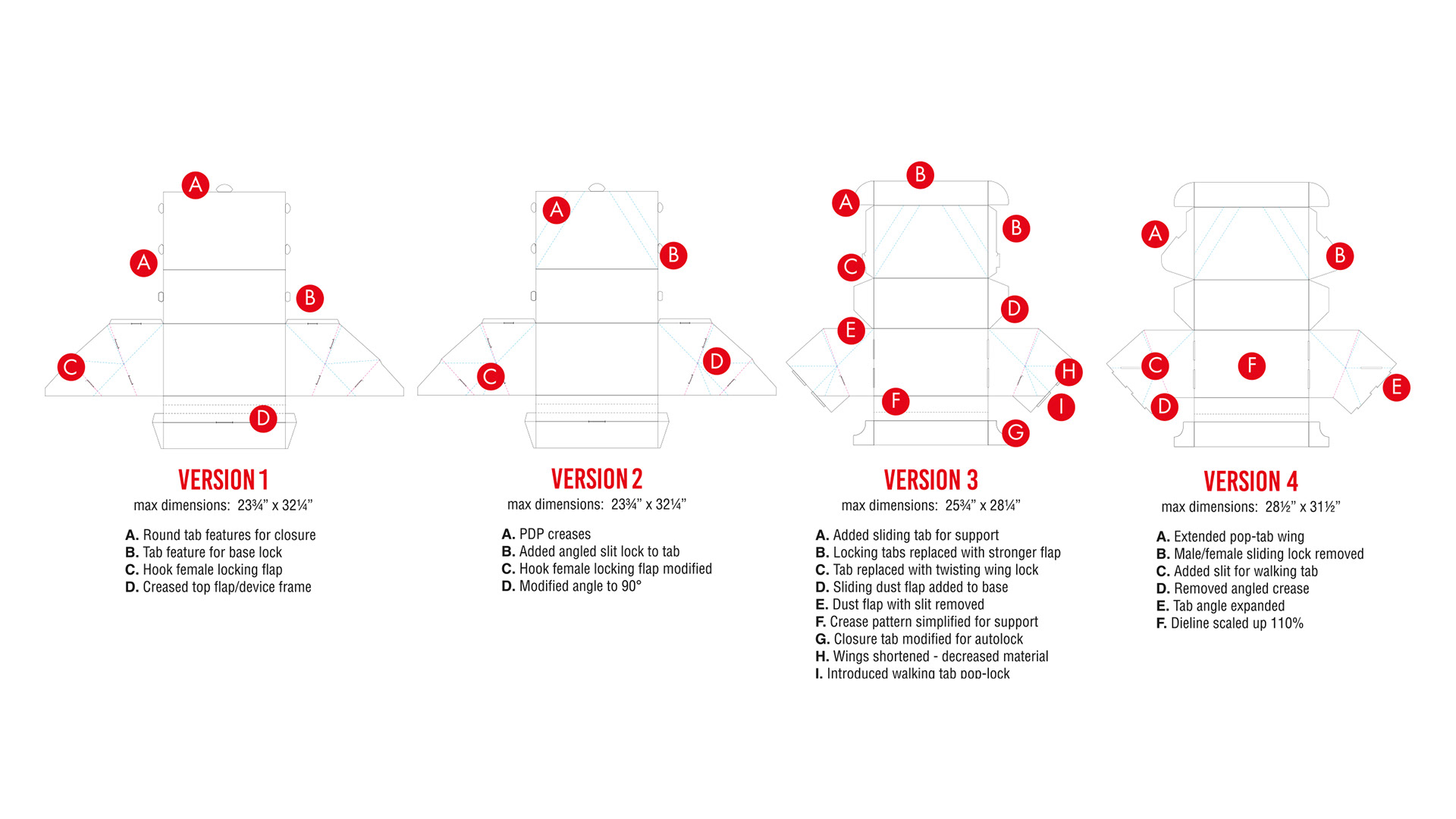

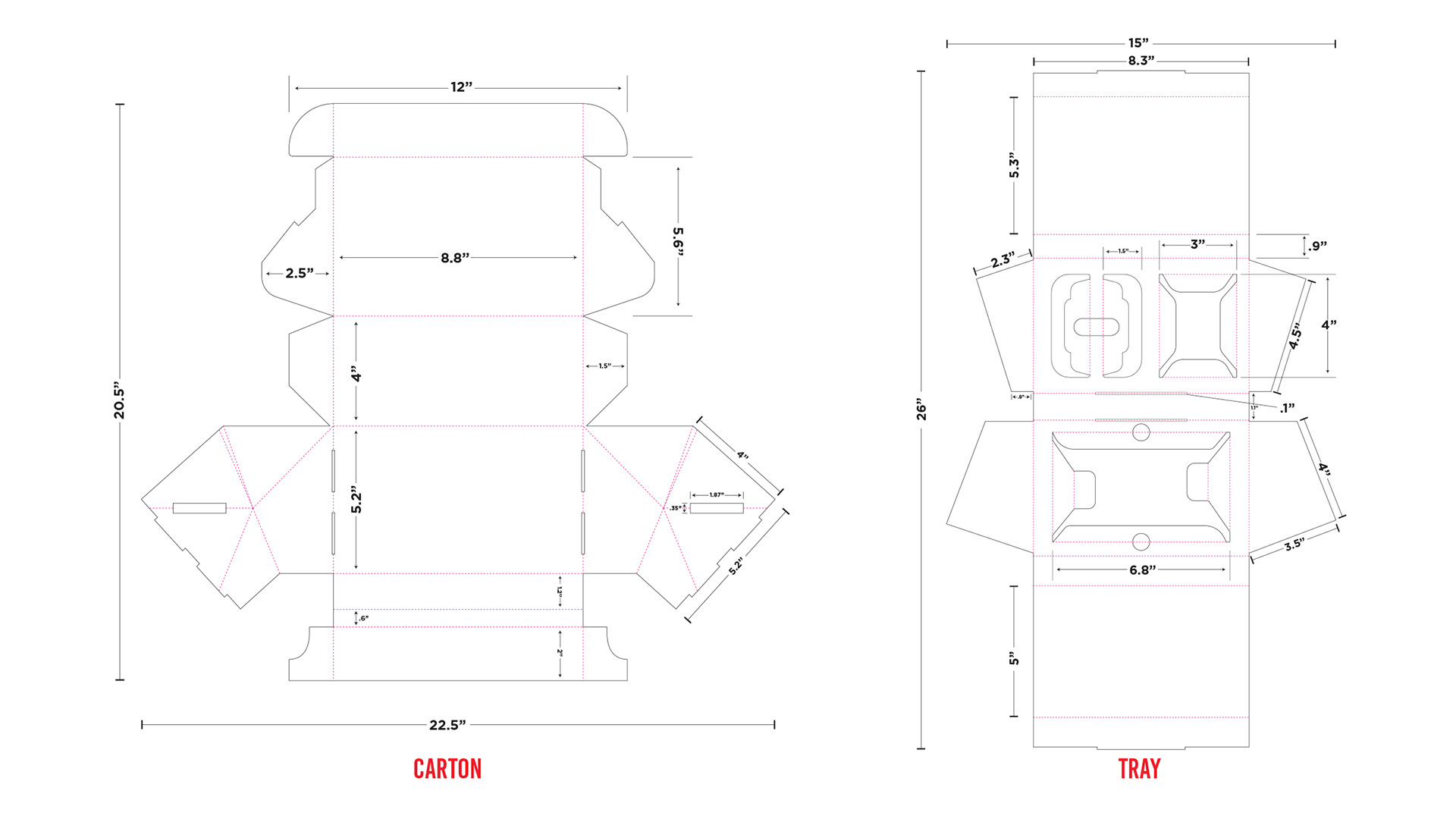

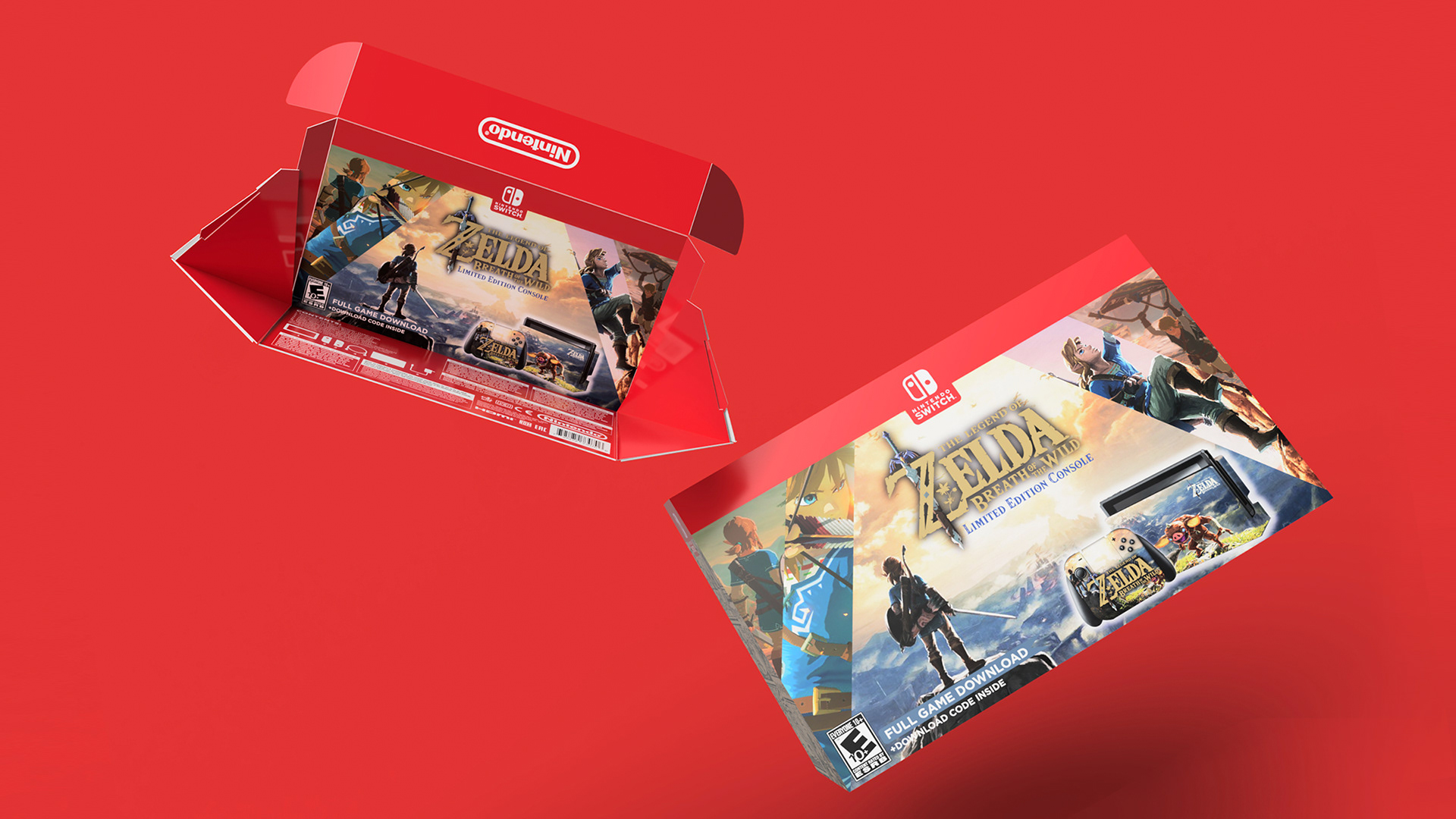

In the 2019 PPA (Paperboard Packaging Alliance) student design challenge, the goal was to create a convertible paperboard structure that can transform from a traditional retail display to a consumer home product. This structure was engineered to convert from a shelf-stable unit, to a paperboard-based display stand.

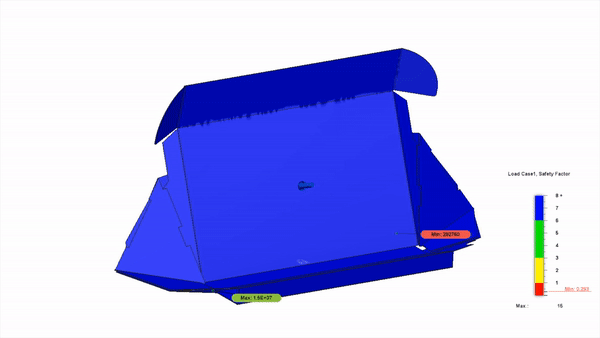

This simulation shows the stress points and flex, when weight is applied at the principle. Qualitative study demonstrates calculated flex positioning, demonstrating that this paper structure can hold the weight of the Nintendo Switch™ Console.

*Please note: this project was completed at the Fashion Institute of Technology. Game graphic artwork is property of Nintendo. I claim no credit to the uncredited photos in the design. This work is only for educational purpose.*
